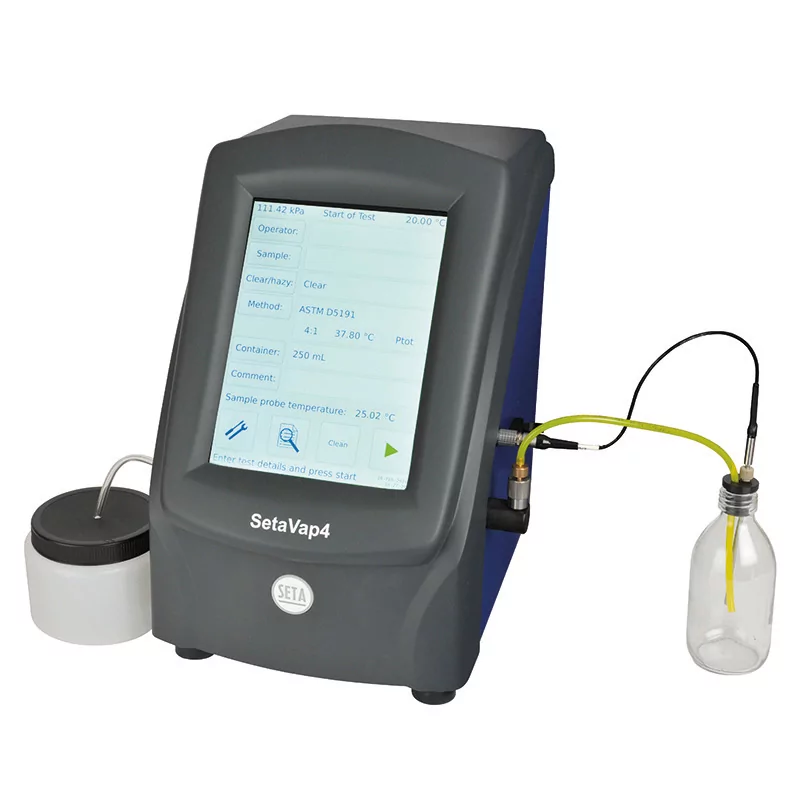

The SetaVap4 is a fully automated vapour pressure analyser which provides fast, reliable and precise analysis of a wide range of volatile liquids, including gasoline, solvents and light crude oil.

The measurement system uses a piston based design in compliance with triple and single expansion test methods and regulations, reporting DVPE, RVP, EPA and CARB calculations. For precise results, the minimum dead volume design reduces sample carryover and a fully automated test sequence removes possible operator bias.

A colour touch screen and clear user interface guides the operator through the menu system and simple operator sequence. Results are stored internally and can be viewed on the screen or saved directly to a USB memory stick or LIMS for further data management and analysis.

The SetaVap4 provides users with the latest generation of automated moveable piston based technology for vapour pressure testing.

• Piston design for triple and single expansion test methods

• Peltier cells for heating and cooling

• Integrated shaker for crude oil measurements

• Large LCD touchscreen display

• Simple test procedure

• Internal results storage with USB port

• Compact, rugged design ideal for portable field or laboratory use

• DVPE, RVP, EPA and CARB calculations

• Statistical quality control software
