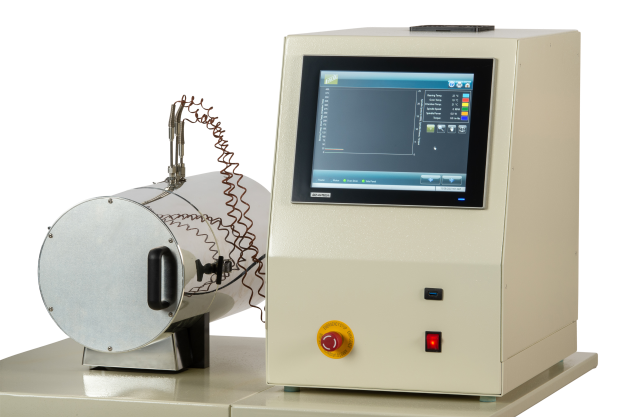

The Falex High Speed - High Temperature Bearing Test Rig offers versatility and operational simplicity. This test apparatus is designed to evaluate greases for extended periods of ball bearing operation under light loads, high speed and elevated temperatures. The standard apparatus includes two independent “CRC” axially loaded test spindles. These spindles rotate two SAE No. 204 ball bearings; at 10,000 revolutions per minute under light loads. Alternate spindle systems are available upon request. The instrumentation console allows operator control of the instrument test parameters and provides test data display. Standard configuration provides Chamber Temperature from ambient to 371° C (700° F), Torque, Specimen Temperature, Chamber Temperature, and Test Time displays. The Falex High Speed-High Temperature Test Machine provides the accuracy and precision to obtain reliable test data as outlined in the ASTM Standard Test Method D 3336
